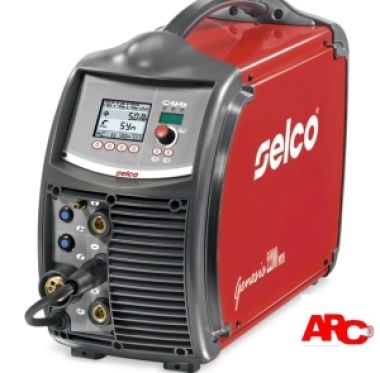

Genesis 2200MTE

Genesis 2200MTE

  • Contact us
  • 616

  • Chúng tôi chuyên cung cấp các loại máy hàn nhôm TIG AC/DC., MIG/MAG Pulse của các hãng GYS-Pháp, SELCO-Italy.

    Nếu bạn có bất kỳ câu hỏi nào, xin vui lòng liên hệ với chúng tôi.

    Vui lòng truy cập tại: www.selcoweld.com

  • MIG/MAG Pulsed - MMA - TIG DC HF Start
  • Single-phase 1x230V
  • EasyArc is standard
  • Built-in wire feeder unit
  • iPanel LCD control panel
  • Customers like it because:
  • 230V supply single-phase
    TIG, MIG/MAG and MMA
    all-in-one
    300mm wire spool
    • Light job shop fabrication
    • Building sites
    • Shipyards
    • Plants machinery construction
    • Automobile industry
    • Railway industry
    • Food industry
    • Chemical industry
    • Repair and overhaul
    • Workshops
    • Sheet metal working

    If you like over A. Please contact us

  • General


    Welding processes MIG/MAG - PULSED MIG/MAG - MMA - TIG DC HF - TIG DC Lift
    Materials Carbon steels - Stainless Steels - Aluminum - Copper
    Dimensions  620x270x460mm
    Weight  23.7kg

    Power supply


    Voltage (50/60 Hz) 1x230V±15%
    Maximum input power 6.4 kVA
    Maximum input current 28.2A
    Power factor PF 0.99
    Efficiency 86%
    Slow blow line fuse 25A
    Open circuit voltage 92Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 3x2.5mm2 - 2m

    Welding


    Adjustment range 3A-220A
    Duty cycle
    MIG/MAG - 40 °C    		 35% - 220A
    60% - 190A
    100% - 180A

    Duty cycle

    MIG/MAG - 25 °C

    100% - 220A
    Ø Wire diameter 0.8 -1.0 mm (opz 0.6-1.2)
    Ø Fluxcoredwire 1.2 -1.6 mm
    Ø Aluminumwire 0.8 -1.2 mm
    Wire speed 0.5 - 22 m/min
    N° rolls 2 (4 opz)
    Wire spool diameter Ø 200/300mm
    Synergic program 60
    Welding program memory location 64
    U/D TIG Torch compatible
    Digital TIG Torch compatible
    U/D MIG/MAG torch compatible
    PUSH PULL torch compatible
    Remote Control compatible
    Standard EasyArc
  • "Green@wave" inverter technology for high energy efficiency and perfect control over all welding phases
  • Heavy duty and enviromental conditions, high service life
  • Selco CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
  • Software based controls can be upgraded as new features become available
  • Reduced dimensions and compact construction
  • High temperature, shockproof, abrasion resistant plastic case
  • Air flow ducting and fully encapsulated PC board to avoid dust contamination
  • Linear controlled fan on demand
  • Energy-saving inverter technology (built-in P.F.C. - power factor controller)
  • Built-in wire feeder unit (2/4 rolls drive)
  • Fully Selco designed wire drive unit
  • Ø 200/300 mm wire spool compatible
  • Welding polarity switch device
  • Full digital and user-friendly LCD graphic display control panel
  • Welding parameters digital display
  • Last job settings auto-storage at switch-off
  • User-defined welding program storage capability (64 free memory locations)
  • Totally programmable user interface
  • Programmable welding operations safety limits
  • Lock-unlock function key protected by password
  • Ideal for stick welding with multiple types of popular electrodes
  • Built-in adjustable arc control features (hot start, arc force, antisticking)
  • Synergic setting for optimal stick welding with all types of electrodes
  • Precise arc striking and high stability arc
  • 2/4 step operating mode
  • Arc dynamic adjustment
  • Perfect arc ignition (soft start - motor slope)
  • Burn-back and droplet detachment correction
  • Crater filler operating mode
  • Synergic operations from databank (60 pre-set programs)
  • Wire speed (0,5-22,0 m/min), amperage and piece thickness adjustment
  • Spot welding mode
  • Intermittent welding mode
  • MIG/MAG bilevel
  • Selco Up/Down torch compatible (welding current adjustment)
  • Digital TIG torch compatible
  • Smart slope control
  • Euro adaptor - U/D MIG/MAG torch compatible
  • Digital MIG/MAG torch compatible
  • Push-pull torch device
  • Remote control compatible
  • Selco WU cooling unit compatible
  • Controlled cooling operations
