Solutions for Automated Plasma Welding

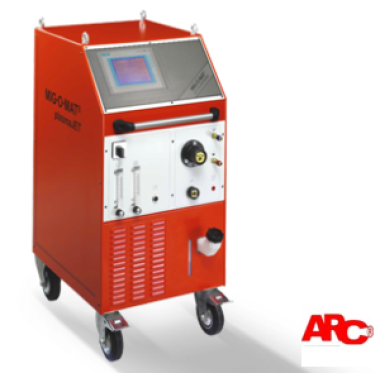

The MIG·O·MAT plasmaJET 250SPS is specially designed for automatic and robot welding systems. Equipped with a modular based Siemens SPC control device the plasmaJET unit offer an easy operation and a high degree of process safety and flexibility, so that huge number of special customer requirements and adaptions can be realized. The integrated high-performance cooling system with monitoring of the coolant flow-rate with is designed for the high demands of the plasma welding process and in particular the plasma welding torch.
The universell designed welding program flow provides a huge number of adaptions on different welding applica-tions by the modes of operation e.g. 2-cycle/4-cycle, timing control, plasma spot welding and control voltage*.
The operation is made by a robust touchdisplay with graphic indication of welding flow and is very easy in handling.
For a simple handling, the display can be demounted from the welding unit and it can be integrated into the custom-ers control desk*.
Mains voltage | 3 × 400 V 50/60 Hz |
---|---|
Mains fuse | 16 A träge |
Welding current | 4 to 250 A |
Duty cycle | 250 A / 60 % |
Duty cycle | 200 A / 100 % |
Pilot current | 3 to 15 A |
No-load voltage | 58 V |
Dimensions W x H x D | 455 × 980 × 620 mm |
Weight | 90 kg |
Color | RAL2002 |
