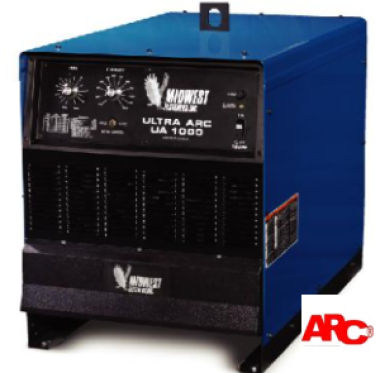

UA 1000, UA 1000 Arc Stud Welding Machine

UA 1000, UA 1000 Arc Stud Welding Machine

  • Contact us
  • 1603

Stud Welding Range

  • 10 gauge (3mm) through 5/8” (M16) diameter studs

Standard Features

  • Three-Phase Transformer, Rectifier
  • Variable Voltage Input 230/460/575
  • Continuous Current Control up to 1200Amps
  • Continuous Time Control .05 to 1.0 seconds
  • Solid-State Circuitry
  • Manual Welding function capable
  • Complete System includes Standard Duty Weld Gun, Ground Cable, and Extension Cable Set.

Stud Welding Range

  • 10 gauge (3mm) through 5/8” (M16) diameter studs

Standard Features

  • Three-Phase Transformer, Rectifier
  • Variable Voltage Input 230/460/575
  • Continuous Current Control up to 1200Amps
  • Continuous Time Control .05 to 1.0 seconds
  • Solid-State Circuitry
  • Manual Welding function capable
  • Complete System includes Standard Duty Weld Gun, Ground Cable, and Extension Cable Set.
Specifications

Width

 22-1/4 in

Depth

 35-3/4 in

Height

 30 in

Weight

 500 lb

Stud Welding Properties

Standard Features

 1 stud welding gun with legs and foot piece
25 ft. (7.62m) of 1/0 ground cable with “C” clamp
50 ft. (15.24m) of 1/0 combination cable

Welding Range

 10 gauge (3mm) through 5/8" (M16) diameter studs

Duty Cycle

 1/2" (M14) 14/min.
3/8" (M10) and less – unlimited
5/8" (M16) 10/min.

Manual Welding Properties

Output

 450 Amps at 38V 60%

Welding Range

 20 to 590 Amps
Content is updating
Content is updating

Download PDF  Download PDF

Please enter your first and last name
Please enter the phone number
Please enter your address
Please enter email address
Please enter subject
Please enter content
Product Similar

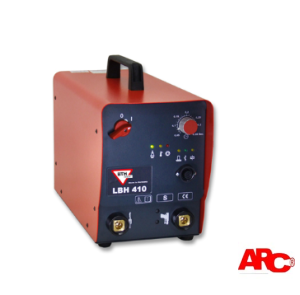

LBH 410

LBH 410

Price: Contact us

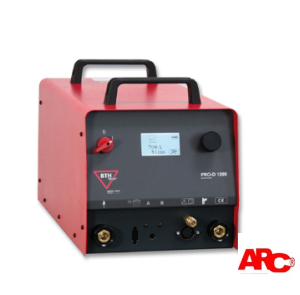

PRO-D 1200 basic

PRO-D 1200 basic

Price: Contact us

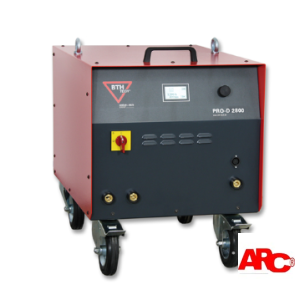

PRO-D 2800

PRO-D 2800

Price: Contact us

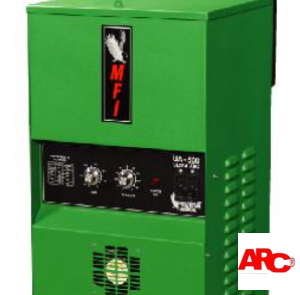

UA 500, UA 500 Arc Stud Welding Machine
